Thursday, June 29, 2017

Project XTracker: Hub adapters are in

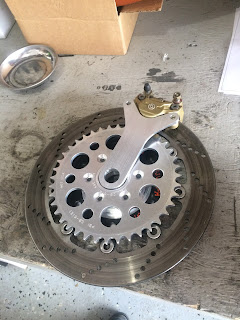

Hub adapters and brake caliper hanger I designed and drew up are finished. I had a machinist friend make these up for me. Machined from 6061 aluminum. They look great now lets hope they fit! Once I verify everything fits and works as desired I'll most likely get them anodized when I strip the bike for paint.

As I mentioned before the rear end is going to have the sprocket and brake on the same side of the wheel to be different. With the adapter now you can see how this is going to work out.


Drawings for the engineering nerds like me out there...
